WELCOME TO AEC BIM SOLUTIONS and SERVICES
AEC BIM Consulting and Services
AEC BIM Solutions is a professional Building Information Modeling services firm that provides a full range of BIM Services with expertise in providing Innovative Sustainable BIM Solutions per BIM Standards that cater to the AEC Industry.
AEC BIM provides comprehensive BIM (Building Information Modelling) & CAD Solutions for various Architectural, engineering, and construction companies, general & specialty contractors, architects, engineers, and building owners to seamlessly integrate and leverage the advantages of BIM technology into their projects within their predefined timelines, standards, and budget, thereby ensuring maximum return on their investment. We follow a well-structured production process along with a refined quality assurance procedure to ensure that the project objectives are met to the highest adherence to client requirements.

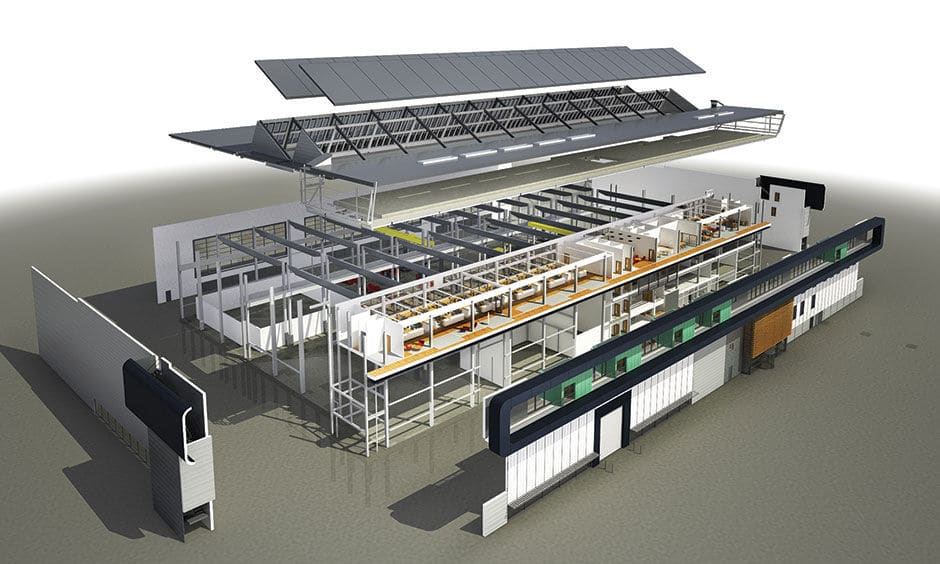

The BIM Services’ Ability to Create Quality 3D Models
AEC BIM Solutions delivers wide-ranging professional and Quality 3D Modeling services to Architects, Engineers, General Contractors, Specialized Contractors, Home Builders, and Retailers. Our Experienced team of professionals delivers 3D BIM Services from LOD 100 to LOD 500 as per the standards. Our gathered expertise in all kinds of Architecture, Structure, Mechanical, Electrical, Plumbing, and Fire Protection systems is streamlined to cater Low rise to high-rise buildings, office buildings, Airports, Hotels, Residential, Hospitals, Educational and industrial, Commercial sectors, and many more. We provide all phases of Architecture, Structure, Mechanical, Electrical, Plumbing, and Fire Protection (ASMEPF) Modelling services.
The Importance of Value Engineering in Project Management
Value Engineering is used to solve problems, and identify and eliminate unwanted costs while improving function and quality. The aim is to increase the value of products, satisfying the product’s performance requirements at the lowest possible cost. Value Engineering should start at project inception where the benefits can be greatest, however, the contractor may also have a significant contribution to make as long as the changes required to the contract do not affect the time scales, and completion dates or incur additional costs that outweigh the savings on offer.
Value Engineering Involves:
- Identify the main elements of a product, service, or project.
- Analyzing the functions of those elements.
- Developing alternative solutions for delivering those functions
- Assessing the alternative solutions
- Allocating costs to the alternative solutions
- Developing in more detail the alternatives with the highest likelihood of success.

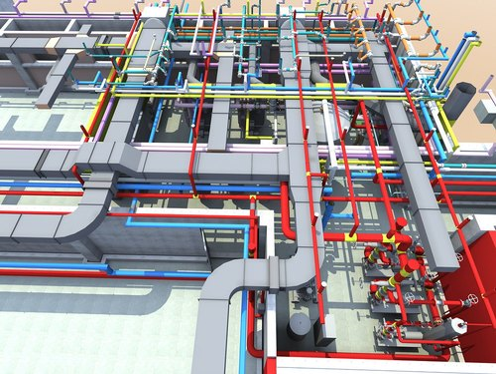

Effective Clash Coordination in Construction Projects
Our professional MEP BIM Coordinated Models allow our clients to check the possible interference among all building systems. It helps the Construction and Design Companies visualize the entire building system before it is constructed onsite, which leads to better project planning. It erases the rework during the construction and saves time and money. We resolve clashes among all trades including Architectural, Structural, Mechanical, Electrical, plumbing, and Fire protection by sharing the 3D Clash Navis viewpoints. We provide Value Engineering for improving system efficiency, reducing costs, and easier maintenance for construction. Upon successful coordination, the models are used for quantity take-off, estimation, and location scheduling.

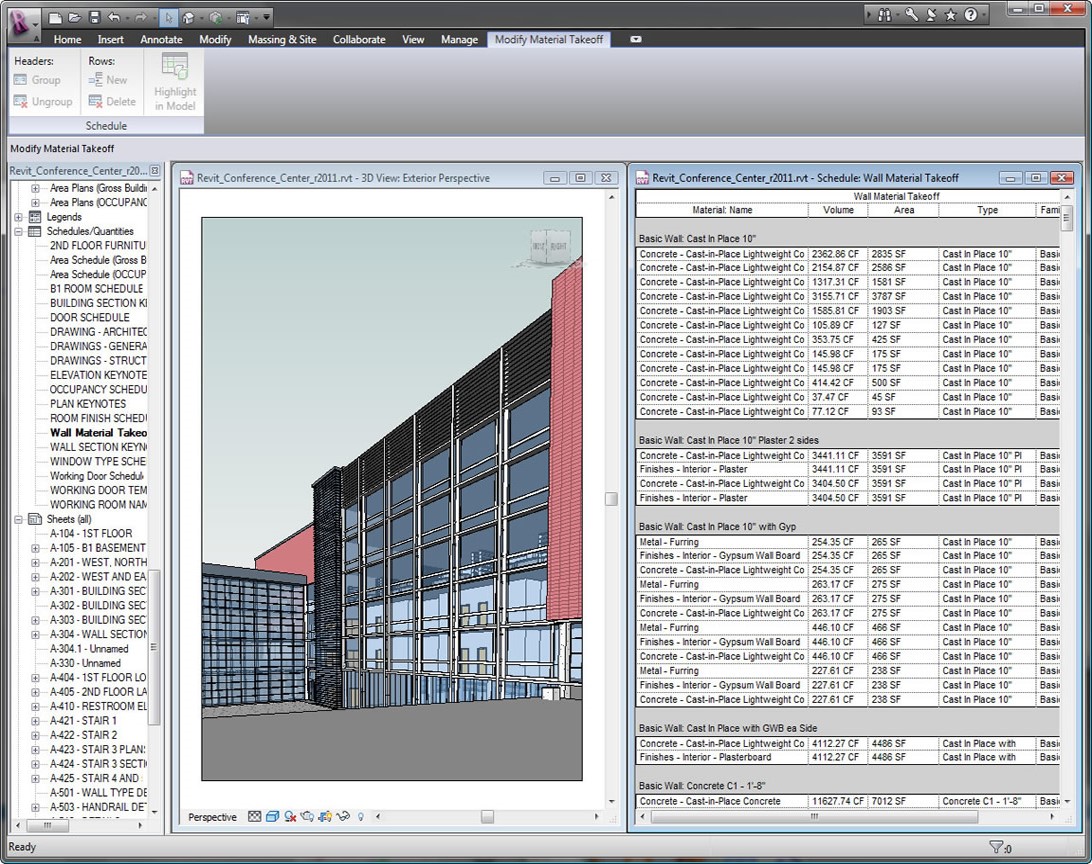

Quantity Takeoff Reports(QTO): Accurate Project Estimation and Cost Analysis
We at AEC BIM Solutions, produce accurate quantities of all materials through BIM and they are automatically updated in the BIM Model. Our Quantity Takeoff reports are formatted in Excel and exported to a database for detailed analysis. Our quantities are generated for a specific time period or project area either in 4D or 5D for managing material procurement and saving inventory costs.

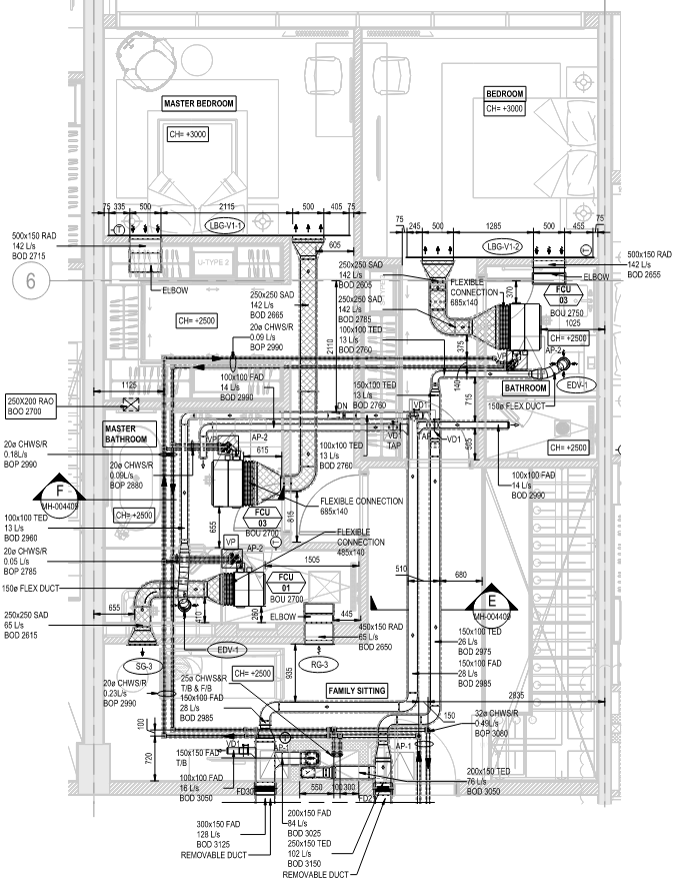

Importance of IFC(Issued for Construction) Drawings
IFC (Issued for Construction) means that the drawings and specifications have been approved by the local governing agencies and that these are the plans by which the project will be constructed. Construction documents are generated from the information provided in our models. Our BIM Models represent the most comprehensive drawings, depicting each component with technical information.
- All the Equipment’s will be with necessary clearances
- We will be producing the final IFC Construction drawings with the below information:
- Floor plans with system sizes and specified scale
- schematic drawings to ensure continuity of services with design intent and to provide riser sizes with branch connections.
- Detail/Enlarge drawings containing typical installation details & mock-ups with equipment schedules
- Block out/Penetration drawings with major structural openings coordinated with MEP requirements

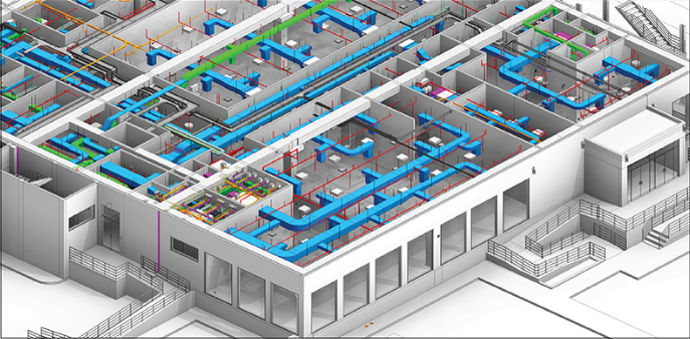

Digital Fabrication: Transforming Construction From Concept To Fabrication
The Architecture Engineering and Construction (AEC) industry is undergoing a revolution; we live in an era in which we will likely see its complete digital transformation, from concept to fabrication. While many may think the adoption of BIM is an end in itself, moving from 2D to 3D was really only an initial phase in a longer digitization process. It will eventually lead to computationally assisted design, automated manufacture, and assembly. While this all sounds far-fetched, we have seen this happen before, in the world of manufacturing. AEC’s destination is a case of history repeating itself. There are firms now racing to get the benefits of digital pre-fabrication, modular in mass production of buildings in mainstream markets – houses, offices, hotels – through the convergence of many technologies and processes appropriated from the rather more mature market of industrial-scale manufacturing, such as aerospace and automotive.

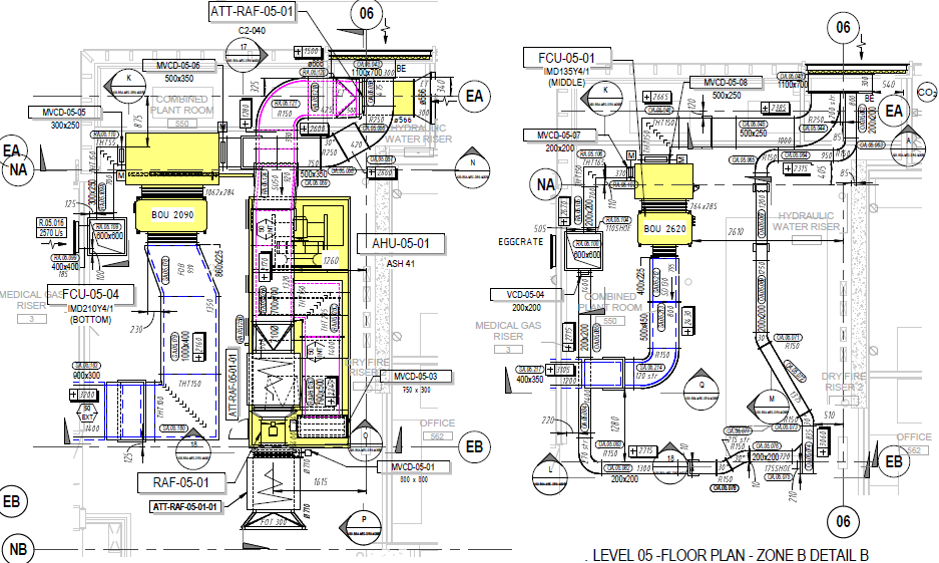

The Purpose and Importance of Spool Drawings in All MEPF Modelling Services
AEC BIM Solutions delivers wide-ranging professional and Quality 3D Modeling services to Architects, Engineers, General Contractors, Specialized Contractors, Home Builders, and Retailers. Our Experienced team of professionals delivers 3D BIM Services from LOD 100 to LOD 500 as per the standards. Our gathered expertise in all kinds of Architecture, Structure, Mechanical, Electrical, Plumbing, and Fire Protection systems is streamlined to cater Low rise to high-rise buildings, office buildings, Airports, Hotels, Residential, Hospitals, Educational and industrial, Commercial sectors, and many more. We provide all phases of Architecture, Structure, Mechanical, Electrical, Plumbing, and Fire Protection (MEPF) Modelling services.

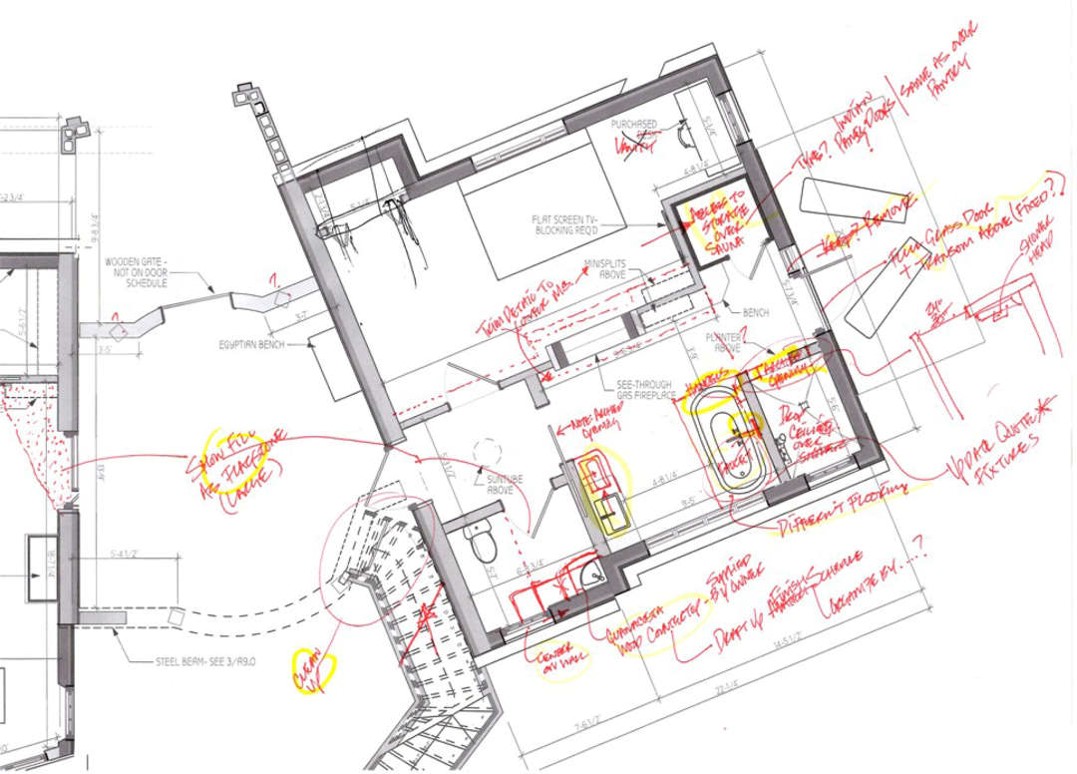

Creating Accurate As-Built BIM Models for Construction and Industrial Projects
Once a building is completed, the as-built drawings are the only resource if there are any renovations to be done in the future. This data may be inaccurate and is usually difficult to comprehend. As-built BIM models solve these issues. The model is a central source for all kinds of documents. One can easily access as-built drawings as well as move around in the 3D environment and understand the space. Our team has expertise in the field of As-built Modelling & drawings through laser scanning and redline markup drawings. We have efficiently executed as-built model & drawings for several developments, which includes, Hospitals, residential, and Industrial projects.

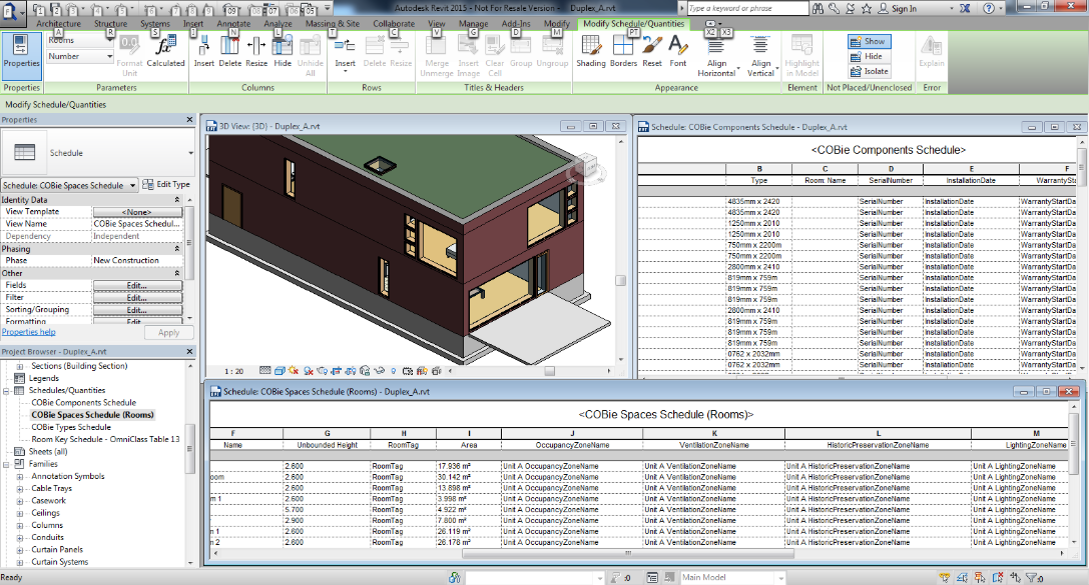

COBie Data: Streamlining Facility Management with Building Information
Construction Operations Building Information Exchange or COBie is a standard data format used in the data gathering of a building during its design and construction phases. This stored digital information is subsequently transferred to the operations and maintenance (O&M) team during facility management. Cobie is key for the client to receive as a deliverable and for other stakeholders to feed in the necessary information derived from the model.
AEC BIM Solutions is truly unique with our service offerings with Cobie data as we can provide BIM authoring technology, Common Data Environment (CDE’s) and BIM implementation & project services.

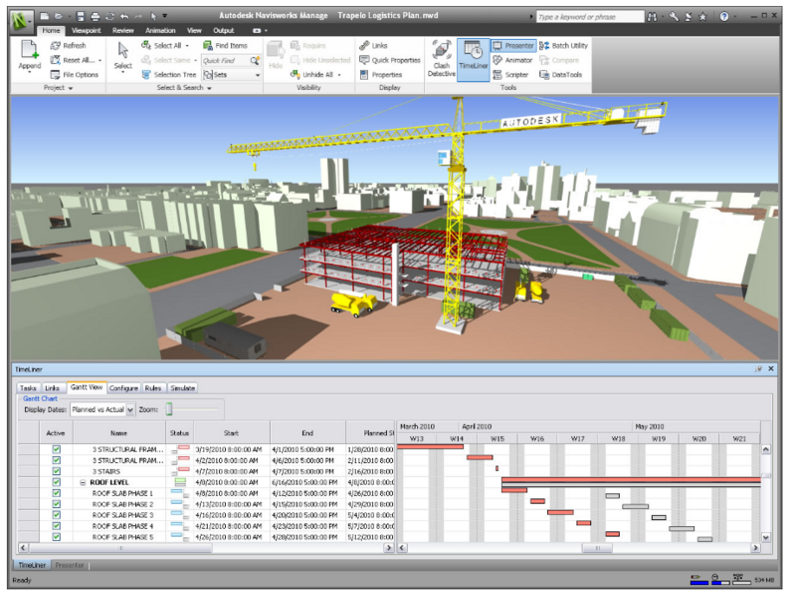

5D BIM Integration is a Highly Effective approach to Construction Project
4D Building Information Modelling (4D BIM) associates time-related information with the various components of a 3D BIM model. Using 4D BIM, construction professionals can make detailed time schedules showing the lead time, progress, and interdependencies between different work tasks. Moreover, they can optimize the use of space on the construction site and visualize how the project will progress over time. 5D BIM adds cost data to the BIM model. By multiplying the quantity of each component type by the cost of each component, the BIM model can calculate the total project cost. In the planning and design phases, 5D BIM can assist construction professionals in producing more accurate cost estimates and assessing how potential changes may impact cost. During construction projects, 5D BIM can be used to compare predicted and actual expenditures and identify issues.

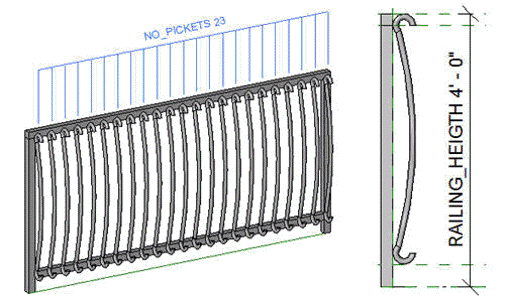

AEC BIM Solutions Team is an Expert in Revit Family Creation that Ensures High-Quality Results
AEC BIM Solutions has trained and developed a specialized team primarily focusing on Revit family creation projects, assuring a high-quality output.
We provide fast and veritable Revit Family creation services for different projects like residential, commercial, educational, and industrial buildings. The highly skilled and experienced dynamic team of professionals ensures the most superior quality services with fast turnaround time and at a reasonable rate.
AEC BIM Solutions and CAD Engineering Services
With 20+ Years of solid expertise in the AEC Industry working on more than 150+ prestigious projects across the globe.
We offer On-Site BIM assistance with a team of trained and & highly experienced Architecture, structure, and engineering professionals with a deep understanding of the latest technology and construction standards.
