In the domain of architectural and construction design, two pivotal technologies stand out: Building Information Modeling (BIM) and Computer-Aided Design (CAD). Despite their common utilization in the realms of architecture, engineering, and construction, these tools diverge significantly in purpose and distinct advantages.

This piece will explore the fundamental distinctions between CAD and BIM, aiding your comprehension to determine the best-suited solution for your particular requirements. The discussion will delve deeper into the comparative aspects of CAD versus BIM.

CAD, also known as Computer-Aided Design, boasts a rich history of usage spanning several decades. Its primary emphasis lies in the precise creation of 2D or 3D representations of buildings or products. CAD software empowers designers to craft meticulous geometric portrayals of objects, incorporating detailed measurements and dimensions. This technology enables architects and engineers to draft plans, generate technical drawings, and scrutinize structural elements.

Contrariwise, BIM, the more advanced technology, transcends the conventional capabilities of CAD. BIM involves the generation of intelligent virtual models representing buildings or infrastructure projects. These models encompass not only geometric data but also rich information concerning the diverse components constituting the structure – encompassing materials used, cost estimates, energy analysis data, and construction schedules, among others.

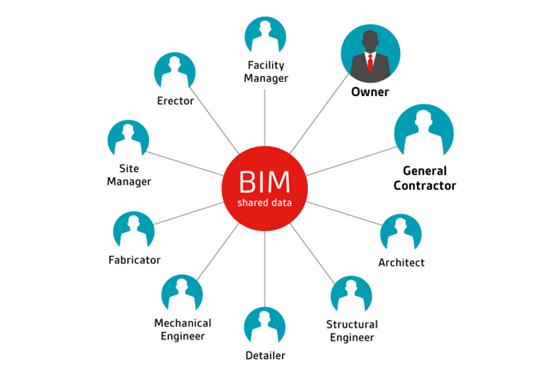

Whereas CAD largely concentrates on visual representation, BIM establishes a collaborative platform where multiple stakeholders collaborate throughout the entire project lifecycle. This inclusive roster includes architects, engineers, contractors, and facility managers, engaging in shared information within a centralized database. BIM not only fosters improved coordination among various disciplines involved in a project but also facilitates superior decision-making via real-time data exchange.

While both CAD and BIM present their own merits contingent on specific project requisites, it’s imperative to acknowledge the escalating prominence of BIM consulting services. These services have gained traction owing to their ability to streamline workflows across different construction project phases, minimizing errors and enhancing overall efficiency.

In summary,

CAD primarily focuses on crafting meticulous 2D/3D drawings with precise measurements,

whereas

BIM transcends visual representation, generating intelligent virtual models endowed with extensive information about building components.

The increasing demand for BIM consulting services is a testament to their role in enabling collaboration, data exchange, and improved decision-making throughout the construction project’s entire lifecycle.

What Circumstances does CAD take Precedence over BIM?

For extensive construction documentation and specific shop drawings, CAD remains a viable option. Employing CAD for the design and documentation of separate elements may prove simpler than modeling an entire structure within BIM.

CAD is the favored choice in situations where:

1. Exceedingly precise technical 2D illustrations are essential
2. Solely drafting is needed without any data prerequisites
3. Working with collections of sheets containing numerous perspectives
4. Modelling necessitates frequent manual alterations as opposed to parametric modifications
5. Converting raster images into CAD vector drawings
6. Projects have a smaller scope and scale

Hence, CAD is most suitable for technical documentation and transforming drawings into an electronic format. It provides specialized tools for drafting tasks as opposed to managing information on a building scale.

When Does BIM Provide More Value? For large collaborative projects, BIM is the superior approach. Since BIM integrates multi-disciplinary data into coordinated information models, it provides much more value than just drafting capabilities.

Advantages of BIM over CAD encompass:

1. Enhanced collaboration among project participants
2. Capability for intricate generative design
3. Improved clash detection and issue resolution
4. Advanced analysis for LEED certification, energy efficiency, etc.
5. Precise quantity takeoff and cost estimation
6. Information-rich models benefiting facility management
7. 5D scheduling and sequencing with time and cost data
8. Elevated construction quality with reduced errors and omissions

BIM heightens productivity, mitigates risks, and facilitates coordinated workflows among teams. Its model-centered methodology and unified database make it well-suited for intricate building projects and infrastructure.

In conclusion,
While both CAD and BIM serve digital design purposes, they diverge fundamentally in their approach. CAD emphasizes drafting, whereas BIM generates information-rich, coordinated models throughout the project’s lifecycle.

Typically, CAD excels in detailed drawing and documentation tasks, while BIM is preferable for integrated building design, analysis, and data management.

It delivers greater value for complex, collaborative projects. Recognizing the distinctive capabilities of CAD and BIM outlined in this piece aids in determining the appropriate approach tailored to specific requirements. Both solutions will continue evolving and maintaining crucial roles in the architecture and construction industry.
